*Characteristics:

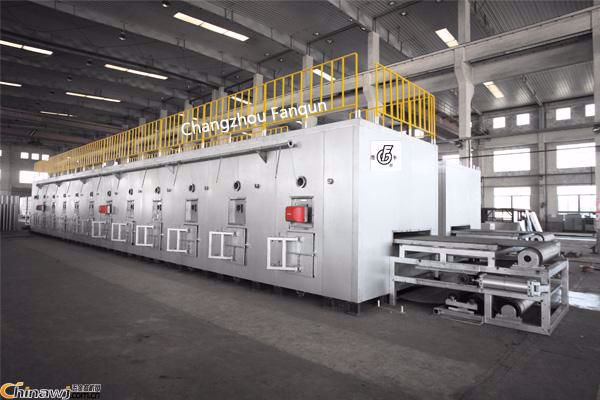

The width of the belt roaster is 4m and the effective length is 156m.

The utilization factor is 1.01t/(m2·h), normal production is 631.3t/h, the thickness of cloth is about 400mm. Equipped with 232 pallets, the width of the pallet is 4m and the length is 1.5 m.

The bellow mainly USES 6m big bellow

*Applications: ?

Metal

?

Description:

The whole process of drying, preheating, roasting and cooling is completed on one equipment, which is characterized by simple process, compact arrangement and light equipment tonnage, creating conditions for the factory to reduce the floor area, reduce the amount of work, realize the recycling of roasting gas and reduce the heat and power consumption.

?

The belt roaster of our company is specially adapted to the requirement of enlarging production scale and realizing scale. Its maximum capacity has reached 750 m2 and the output per machin
